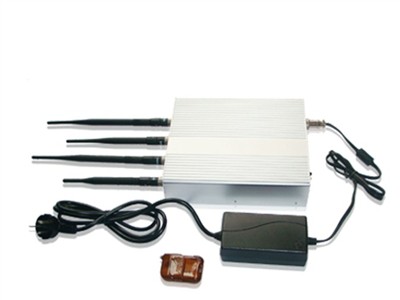

Product features(KT-101B)
KT-101B have series type: Power Adjustable type, Remote Monitoring type,five bands,six bands type block 3G and Bluetooth completely.With adjustable outpower and remote monitoring system, apply for prisons,detention centers, labor camps, etc,and other places need a long time uninterrupted work, is the "classic model" used in detention centers and prisons at home and abroad,there're millions of KT-101B jammer was sold in various kinds of security places at home and abroad.
Technology features
1.Taking use of super-high frequency and mini-power interference technology. High efficiency.
2. Effectively making subsections. Just interfering downlink and no interception on the base station.
3. Extreme portability. The weight for machine itself and antenna is just 150g.
4. Low power consumption. Working time for machine is about 2-3 hours. Supplied power by battery.
5. Slow start up design of circuit. These elements can maintain the stable operation condition with high integration.
Technical parameters
|
Output port |
Frequency |
Average out-putting power |
Channel out-putting power |
|
CDMA |
870-880MHz |
35dBm |
4dBm/30KHz(min) |
|
GSM |
935-960MHz |
35dBm |
6dBm/30KHz(min) |
|
DCS |
1805-1850MHz |
33dBm |
3dBm/30KHz(min) |
|
3G(or PHS ) |
2110-2170MHz |
33dBm |
3dBm/30KHz(min) |
|
or 1930-1990MHz |
|
Bluetooth |
2.4GHz&2.5GHz |
35dBm |
4dBm/30KHz(min) |
|
Power supply: AC110V or AC220V |
|
Semidiameter of interception:2-50 meter |
|
Energy Consumption:30W |
|
Dimension: (L*W*H) 210*50*170mm |
|
Net Weight:3.5kg |
It can block the signal frequency range from 100MHz to 2.5GHz.Four kinds of signal above can be choosed.
Notices
Ø Be sure to connect all the antenna first before the power supply is switch on.
Ø Please do not take off antenna when the machine is working.
Ø Antenna shall be used vertical to the ground. working more efficiently.
Ø Please don’t put the jammer in the water and fire to avoid using in the bad condition of over-wet, over-hot, highvoltage and high magnetism.
Ø If the jammer can not be charged or other unconventionality(i.e. The indicatior light doesn’t light up), please contact with the distributor in local place. Any refit and incorrect repair is not allowed.
Ø Any ruin and disrepair caused by incorrect operation and disassembly will be excluded from the repair with free of charge.
|
